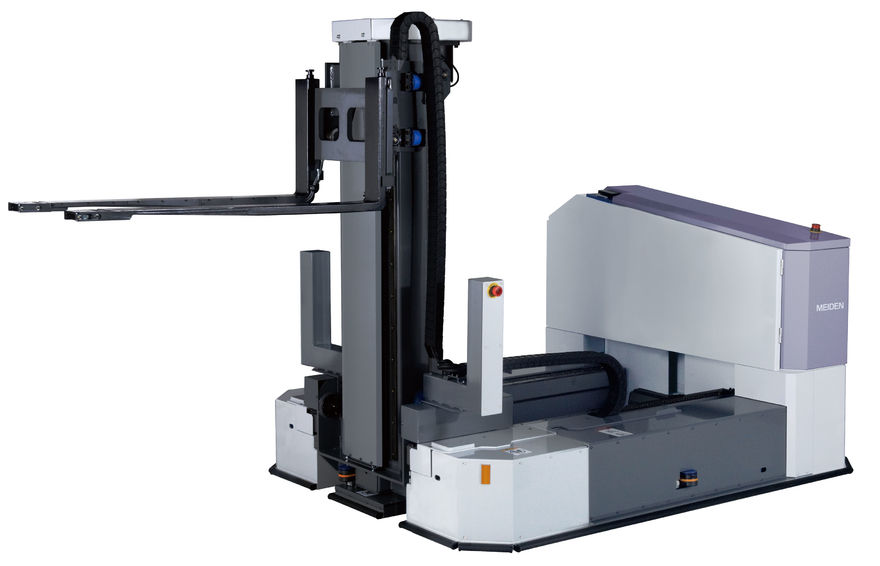

Side-Fork Type Pallet Transport AGV
unmanned forklift
The forklift type AGV is an AGV for transporting pallets. It is a transportation system that accurately and safely moves between process facilities in the product production line to designated lines by operating system/operator commands. Unlike the conveyor or RGV method, AGV has the advantage of being easy to apply to various layouts with simple route setting.
Product type: High-performance unmanned forklift
Payload: 1100kg (Deadweight: 2050kg)
Loading Height: 1500mm
Driving method: laser sensor
Driving direction: Forward/Reverse/Left/Right/Spin turn
Driving speed: forward and backward 60m/min - left and right 30m/min
Product size: W2278 * L1748 * H1738mm
Battery Capacity: 48V 159AH
Error accuracy: 10mm, Fork 30mm
Upper control: WI-FI, PLC Ethernet communication through software and AGV communication to configure simple control
Features
-
When moving the 2400mm aisle width, it is possible to move without changing the direction of the unmanned forklift.
-
It is possible to rotate 180 degrees in a passage width of 3000mm.
-
Brushless motor for driver is applied to improve cleanliness and maintenance
-
In consideration of safety, obstacle sensor bumper sensors are installed in all directions.
Safe transfer
Designed with the center of gravity in mind, it can safely transport even heavy loads located high up!
Applications
If the conveyed item is on the floor
If the object to be transported is on the frame.
When the item to be transported is on the shelf.
Technical Specification
Type
unmanned forklift
permissible load
1100kg
driving style
Magnetic or laser sensor
driving direction
Front/back/side/spin turn
max speed
60m/min (side 30m/min)
max height
1000mm or 1800mm
rise rate
250mm/sec
turning radius
Minimum 1500mm
forklift size
W2278*L1748*H1738
battery
48V 150Ah
