SOLUTION & SERVICE

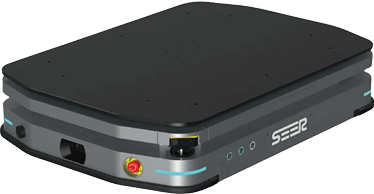

AMB-1000JS & AMB-500JS

Safe Lifting Robots

The AMB-JS line of AMRs is a cutting-edge material handling solution designed to enhance operational efficiency and safety.

500 / 1000kg
Maximum Load Capacity
7 hours
Battery Operating Time
±5mm, ±1°
Positioning and Angle Accuracy
2
Number of Lidars
1460mm
Turning Diameter
≤1.5m/s
Travel Speed

01Key Features

01CE Certification

  • - Achieved CE Safety Certification (ISO 3691-4:2020), ensuring compliance with international safety standards.

02Efficient Charging and Operating Time

  • - Optional 40A high-speed charging station allows for a full charge in 1 hour.
  • - Operates for up to 7 hours under maximum load conditions.

03High-Precision Laser SLAM Navigation

  • - Utilizes laser SLAM navigation technology to achieve positioning accuracy within ±5mm.
  • - No need for reflectors during installation, allowing precise navigation even in dynamic environments.

04Advanced Rack Recognition Function

  • - Supports wide-range rack recognition even when the cross-section distance is ≥7cm.
  • - Automatic calibration enables precise alignment with racks, improving the success rate of loading operations.

05Multiple Load Capacity Options

  • - Available in 500kg and 1000kg load capacity models to meet diverse material handling requirements across industries.
