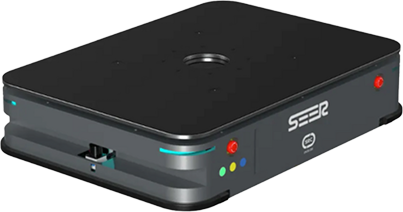

SJV-SW600

Rotary Lifting Robot / Powerful Performance, Excellent Cost-Effectiveness

600kg
Maximum Load Capacity
8 hours
Battery Operating Time
±5mm, ±0.5°
Positioning and Angle Accuracy
2
Number of Lidars
1015mm
Turning Diameter
≤1.5m/s
Travel Speed

01Key Features

01Dual Lidars

  • - Doubled safety and reliability.
  • - Equipped with an advanced front navigation lidar and a rear obstacle avoidance lidar to ensure a safe operating environment.

02Spin Function

  • - Flexibility in pickup, drop-off, and material handling.
  • - The AMR body and lifting plate can rotate independently, allowing easy maneuvering in narrow aisles and dense shelving areas with limited space.

03Three Navigation Modes with ±5mm High Precision

  • - Positioning accuracy up to ±5mm, supporting multiple navigation methods such as SLAM, QR codes, and laser reflectors.
  • - Provides a versatile and reliable navigation solution for various environments.

04Easily Handles Loads up to 600kg

  • - This compact robot can handle loads of up to 600kg, making it ideal for a wide range of tasks—from material transport in e-commerce sorting centers to production line supply.

05Up to 2m/s Unloaded Speed

  • - Capable of reaching 1.5m/s under maximum load conditions for efficient operations.

Designed to deliver strong performance even in confined spaces, suitable for logistics, manufacturing, e-commerce, and more.
