Eco Flow Series
Main Features
Smooth Angle Conversion
When changing the wheel angle for product sorting, no sudden braking or mechanical force is applied, allowing smooth and stable product movement.
High Throughput
A high-speed sorting system capable of handling 2,500 – 6,000 products per hour.
Plug & Play (Easy and Quick Installation)
With the Plug & Play mechanism, connections between diverters, and between diverter and conveyor, are extremely simple, allowing faster and easier installation than any other product.
Easy and Quick Maintenance
Together with the Plug & Play mechanism, the modular design of major components ensures simple and fast maintenance.
Quick Release Wheel Module
The most important unit, the wheel module, is designed with a Quick Release principle to enable rapid service in case of trouble.
Software Function Block
Provides software function blocks that can be directly integrated into PLC.
Excellent Quality & Cost Competitiveness
Guaranteed high quality based on German technology and competitive pricing through local production in China.
Flexibility
A product lineup that can flexibly respond to line expansion/reduction, changes in cargo volume, and variations in handled items. Replacement, addition, and reduction operations are also made easy with the Plug & Play mechanism.
Quick Release Wheel Module
50 mm extension frame
Technical Specifications
| Eco Flow | Speed Flow Compact | |
|---|---|---|
| Type | SLD / DLD / ZZD | SLD / DLD |
| Speed | 1.5 m/s | 2.0 m/s |
| Wheel rotation (max) | -90° ~ +90° (max. 0.3 sec) | Same as Eco Flow |
| Base length | 200 mm / 400 mm / 373.2 mm | 200 mm / 400 mm |
| Product height | 360 mm | 227 mm |
| Width options | 400 / 600 / 800 / 1000 mm (+50 mm extension possible) | Same as Eco Flow |
| Product conditions |
|
|
| Common specs |
|
|
| Control |
|
SLD : Single Line Diverter
SLD : Single Line Diverter

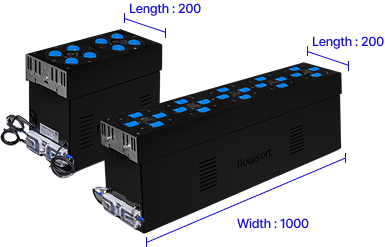

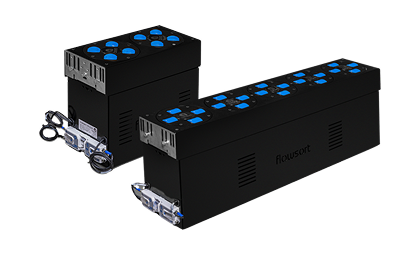

SLD (Single Line Diverter) is a type where the wheel units are aligned in a single row.
Length : 200mm
- - Length extension: Combine SLD and DLD units as needed.
- - Example of required sorter length:
- * For 600 mm: 1×DLD + 1×SLD connected
- * For 1200 mm: 3×DLD connected
Width options: 400, 600, 800, 1000 mm
- - Select according to the conveyor width
- - Each unit allows an additional width extension of up to 50 mm
Product lineup by conveyor width:
- SLD 400 / SLD 600 / SLD 800 / SLD 1000
With a standard unit length of 200 mm and wheel units arranged in a single row, there are four width variations available (400 mm to 1000 mm in 200 mm increments) to match different conveyor widths. Each unit can be expanded by up to 50 mm. Depending on the size and characteristics of the items to be sorted, additional length beyond 200 mm can be achieved by freely combining SLD and DLD units to configure the desired line.
DLD : Double Line Diverter
DLD : Double Line Diverter

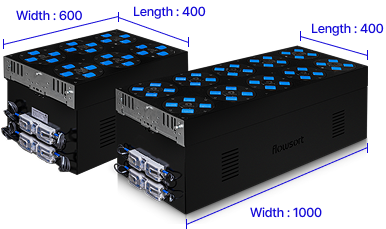

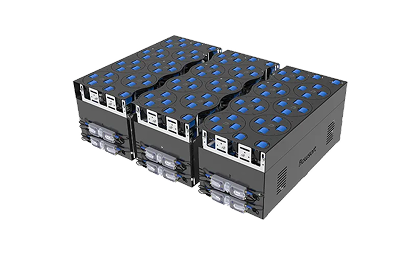

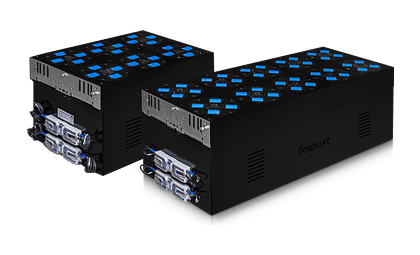

DLD (Double Line Diverter) is a type where the wheel units are aligned in two rows.
Length: 400 mm
- - Length extension: Combine SLD and DLD units as needed.
- - Example of required sorter length:
- * For 600 mm: 1×DLD + 1×SLD connected
- * For 1200 mm: 3×DLD connected
Width options: 400, 600, 800, 1000 mm
- - Select according to the conveyor width
- - Each unit allows an additional width extension of up to 50 mm
Product lineup by conveyor width:
- DLD 400 / DLD 600 / DLD 800 / DLD 1000
With a standard unit length of 400 mm and wheel units arranged in two rows, there are four width variations available (400 mm to 1000 mm in 200 mm increments) to match different conveyor widths. Each unit can be expanded by up to 50 mm. Depending on the size and characteristics of the items to be sorted, additional length beyond 400 mm can be achieved by freely combining SLD and DLD units to configure the desired line.
ZZ : Zigzag Diverter Capable of sorting items as small as 80×80 mm
ZZ : Zigzag Diverter Ideal for sorting small products (minimum 80×80 mm)
The Zigzag Diverter features a design where the wheel units are arranged in a zigzag pattern.
Length: 373.2 mm
- - Length extension: Combine SLD and DLD units as needed
- * 2 units connected: One set for left and right alignment
- * Additional extension: Insert middle unit as required
Width options: 400, 600, 800, 1000 mm
- - Select according to conveyor width
- - Each unit allows an additional width extension of up to 50 mm
Product lineup by conveyor width:
- ZZ 400 / ZZ 600 / ZZ 800 / ZZ 1000
This model is designed for small product sorting, with wheel units arranged in a zigzag formation. The standard unit length is 373.2 mm, available in four width variations (400 mm to 1000 mm in 200 mm increments) to match different conveyor widths. Each unit can be expanded by up to 50 mm. If a longer length is required based on the size and characteristics of the items to be sorted, additional middle units can be connected in the desired quantity to configure the line.
