Speed Flow Compact Series
Key Features
Smooth Angle Transition
During wheel angle adjustments for product sorting, no sudden braking or mechanical force is applied, ensuring smooth and stable product movement.
High Throughput
A high-speed sorting system capable of handling 2,500 – 6,000 items per hour.
Plug & Play
(Easy and Fast Installation)
The Plug & Play mechanism allows for simple and quick connections between diverters and conveyors, making installation significantly faster and easier compared to other products.
Easy and Fast Maintenance
With its Plug & Play mechanism and modular component design, the system ensures simple and quick maintenance.
Quick Release Wheel Module
The most critical unit, the wheel module, is designed with a Quick Release mechanism, enabling rapid servicing in case of issues.
Software Function Blocks
Provides preconfigured software function blocks for seamless integration with PLC systems.
High Quality & Cost Competitiveness
Combines German engineering expertise with the cost advantages of in-house production facilities in China, ensuring high quality at a competitive price.
Flexibility
The product lineup allows flexible adaptation to line expansions, reductions, changes in product flow, or variations in items being handled. Modifications such as replacement, addition, or reduction can be done easily using the Plug & Play approach.
Quick Release Wheel Module
50 mm extension frame
Technical Specifications
| Eco Flow | Speed Flow Compact | |
|---|---|---|
| Type | SLD / DLD / ZZD | SLD / DLD |
| Speed | 1.5 m/s | 2.0 m/s |
| Wheel rotation (max) | -90° ~ +90° (max. 0.3 sec) | Same as Eco Flow |
| Base length | 200 mm / 400 mm / 373.2 mm | 200 mm / 400 mm |
| Product height | 360 mm | 227 mm |
| Width options | 400 / 600 / 800 / 1000 mm (+50 mm extension possible) | Same as Eco Flow |
| Product conditions |
|
|
| Common specs |
|
|
| Control |
|
SLD : Single Line Diverter
SLD : Single Line Diverter

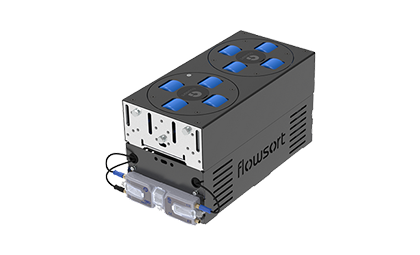

SLD (Single Line Diverter): A diverter type with wheel units arranged in a single row.
Length: 200mm
- - Length Extension: Combine SLD and DLD units as needed to achieve the required sorter length.
- - Example:
- * For 600mm: 1 DLD + 1 SLD combined
- * For 1200mm: 3 DLD units combined
Width Options: 400, 600, 800, 1000mm
- - Select the appropriate width to match the conveyor width.
- - Each unit allows up to 50mm additional width extension.
Product Lineup by Conveyor Width:
- SLD 400 / SLD 600 / SLD 800 / SLD 1000
With a fixed length of 200mm, wheel units are aligned in a single row, and widths are available in four options (400mm to 1000mm in 200mm increments) to match the conveyor width. Each unit can be extended by up to 50mm, and depending on the size and characteristics of items to be sorted, additional length beyond 200mm can be configured freely by combining SLD and DLD units.
DLD : Double Line Diverter

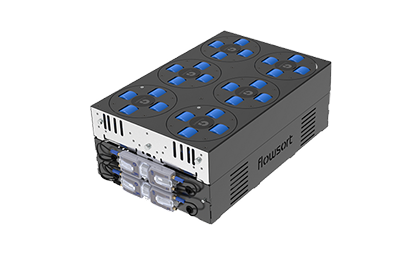

DLD : Double Line Diverter Wheel Rotation Speed: 2.0 m/s | Faster, More Compact, and Lightweight Design
DLD (Double Line Diverter): A diverter type with wheel units arranged in two rows.
Length: 400mm
- - Length Extension: Combine SLD and DLD units as needed to achieve the required sorter length.
- - Example:
- * For 600mm: 1 DLD + 1 SLD combined
- * For 1200mm: 3 DLD units combined
Width Options: 400, 600, 800, 1000mm
- - Select the appropriate width to match the conveyor width.
- - Each unit allows up to 50mm additional width extension.
Product Lineup by Conveyor Width:
- SLD 400 / SLD 600 / SLD 800 / SLD 1000
With a fixed length of 400mm, wheel units are aligned in two rows, and widths are available in four options (400mm to 1000mm in 200mm increments) to match the conveyor width. Each unit can be extended by up to 50mm, and depending on the size and characteristics of items to be sorted, additional length beyond 400mm can be freely configured by combining SLD and DLD units.
