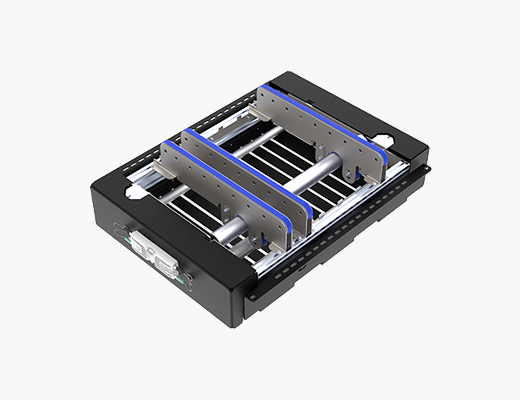

X-Flow 90
-
The X-Flow 90 is an innovative solution designed to sort products at a precise 90° angle.
Its robust design, combined with a special non-slip synthetic belt and an internal guiding system, ensures safe and reliable product diversion without the risk of belt slippage.

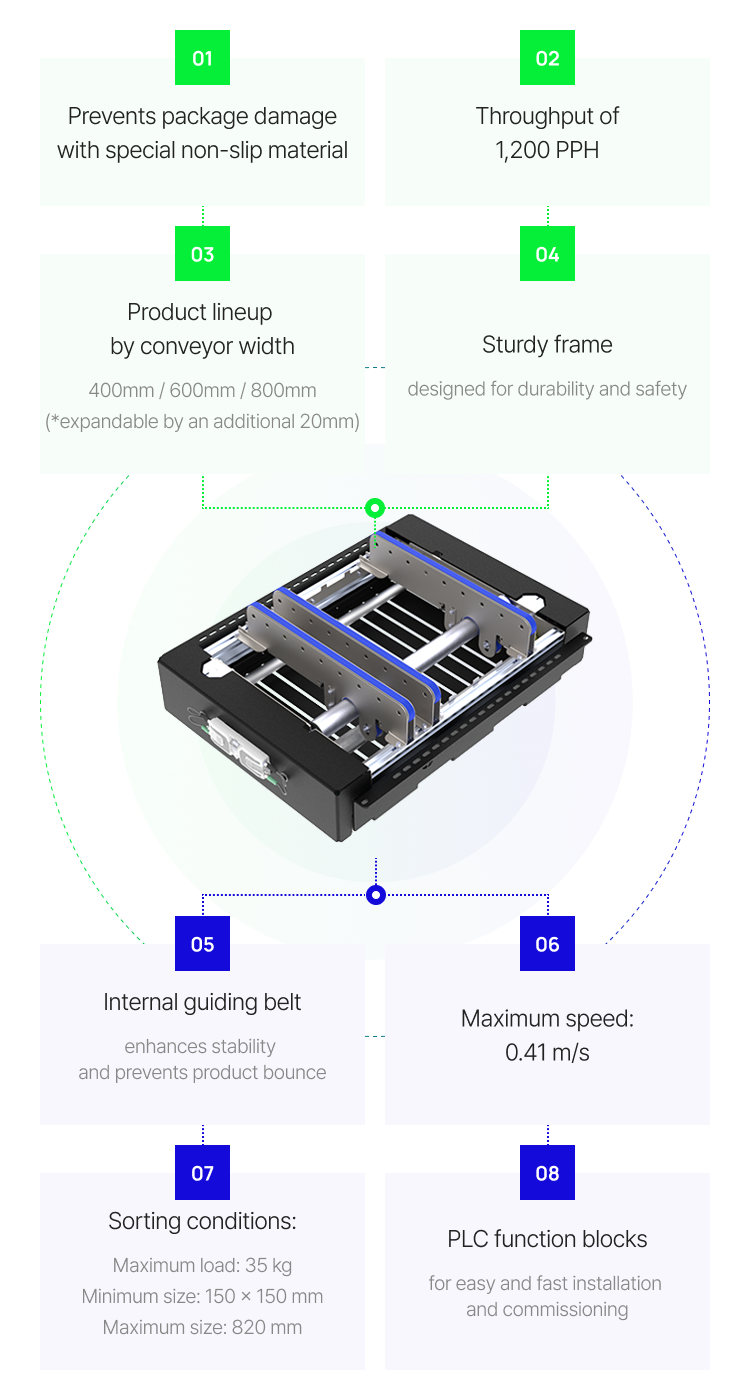

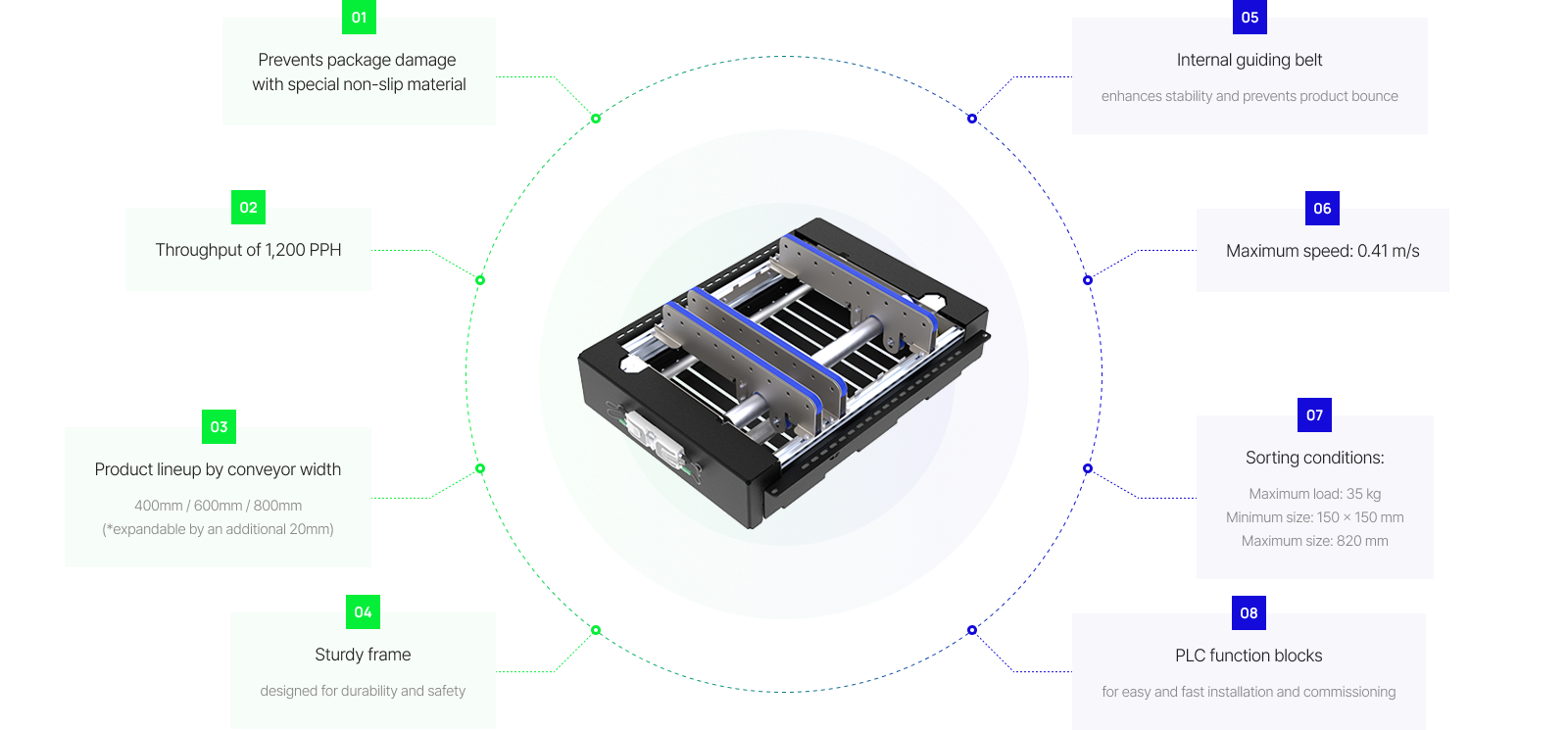

Key Features
Durability & Stability
Offers a long service life, delivering reliable performance with minimal downtime and maintenance requirements.
Non-Slip Belt
Made from a special material that provides high friction, ensuring the belt stays firmly in place without displacement.
Quick Installation
Modular design and pre-configured PLC function blocks enable fast and easy installation and commissioning.
Technical Specifications
- Standard Width
- 400 & 600 mm, up to 820 mm
(with customized flanges)
- Module Length
- 710 mm and 870 mm
- Module Height
- 272 mm (mounted between frames)
- Sorting Angle
- -90° and +90°
- Maximum Throughput
- 1,700 PPH (pieces per hour)
- Maximum Load
- 50kg
- Minimum Product Size
- 150mm x 150mm
- Maximum Product Width
- 820mm
- Maximum Speed
- 0.41m/s
- Lift Motor Drive
- 24V pulse gear drive
- Conveyor Belt Motor Drive
- 24V pulse gear drive
- Sensors
- 2 position sensors
- Control System
- ConveyLinx-AI2 / Protocols: Profinet, Ethernet I/P, Modbus TCP, CC-Link, or MotionLynx / EtherCAT | Connection via standard I/O pin M8 connector
- - X-Flow 90 is engineered to efficiently handle parcels of various sizes and weights, delivering exceptional performance in logistics and sorting systems.
- - Its drive system and control options ensure high-speed and precise operations, supporting multiple communication protocols for seamless system integration and operation.
